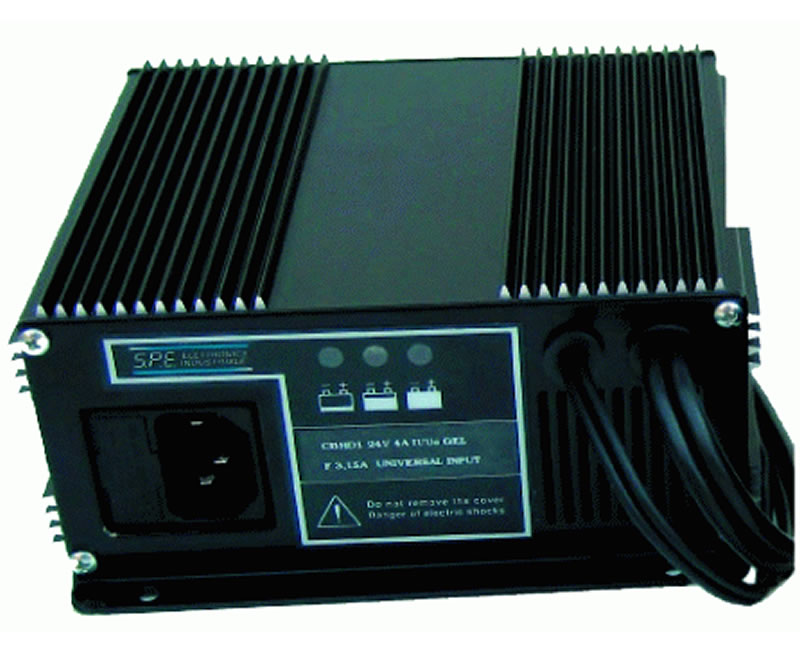

CBHD1 Compact"CBHD1 Compact"
CBHD1 Compact

CBHD1 Compact

Ref: BC-HF-CBHD1

In order to ensure that you purchase the correct product for your specific needs, please call for our latest price and to order this item.
charger model
ratings
battery type
capacity C5
CBHD1 12-2
12V 2A
Wet or GEL
5÷20
CBHD1 12-4
12V 4A
Wet or GEL
20÷40
CBHD1 12-5
12V 5A
Wet or GEL
20÷50
CBHD1 12-6
12V 6A
Wet or GEL
30÷60
CBHD1 24-2
24V 2A
Wet or GEL
5÷20
CBHD1 24-4
24V 4A
Wet or GEL
20÷40
CBHD1 24-5
24V 5A
Wet or GEL
20÷50
  • High frequency system with advanced technology.
  • Universal Input 85Vac√∑264Vac, 50Hz√∑60Hz.
  • Integrated battery discharge indicator with lockout relay for 80% discharged batteries with 3-LED 18 mm diameter remote indicator (optional: please add the suffix LBF to the model of the charger).
  • Remote red/yellow/green charge status indicator also displays signals in case of anomalies (optional)
  • Charging parameters are insensitive to the AC input line voltage variations.
  • Charging process fully controlled by microprocessor.
  • Resident charging curves for lead-acid, AGM and Gel batteries.
  • Possibility to choose from curves for typical leadacid, Gel and AGM batteries, all other curves available on request.
  • Protection with an output relay against polarity inversions, short circuits, over-voltages or anomalies.
  • Efficiency > 85%.
  • Output ripple at maximum charge lower than 100mV.
  • Charge cycle begins with batteries as low as 2V
  • Thermal protection against over heating.
  • Normally closed auxiliary contact of connected AC input line.
  • Forced ventilation with fans.
